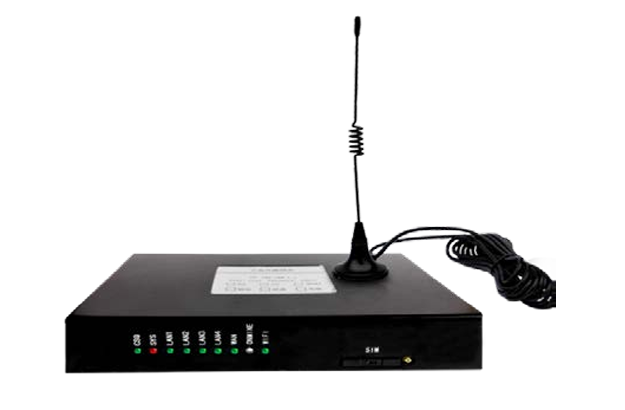

4G Industrial LTE Router

In a networked world where everything is connected, the demand for smart communication will become much and much stronger, especially in the field of smart industrial application and control. The RDEI4020-4G LTE router is also a new generation 4G wireless VPN router launched by RDE Group of India. For industrial-level applications. The device provides fast Internet access to the explosive growth of the 4G cellular data network and a variety of highspeed networked broadband access services. With its security, stability and intelligence performance, thousands of devices can be easily networked, providing high-speed data transmission and communication for the true meaning of the Internet of Things.

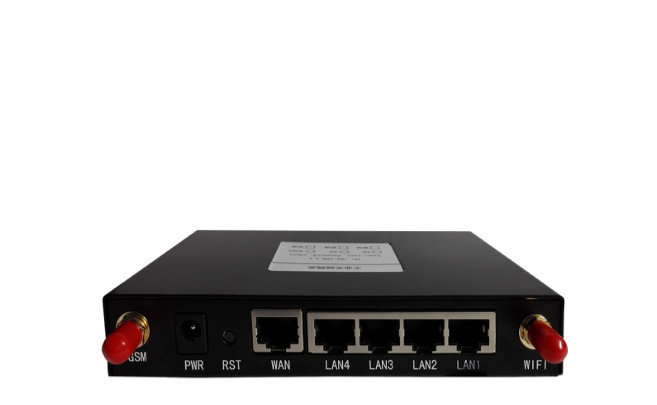

The RDEI4020-4G also provides an Ethernet WAN/LAN multiplexing RJ45 network port, an Ethernet LAN RJ45 network port, a set of industrial Phoenix terminal blocks (serial function and power supply Function), a drawer-type SIM/UIM card slot, which can have the serial port, Ethernet port, and Wi-Fi connection at the same time for enabling pass-through transmission.

The RDEI4020-4G supports remote management via a cloud platform. The cloud platform has a simple graphical interface that can be quick to use. It can let you know the current status of the device anytime and anywhere. Such application is widely used in the M2M industry and the Internet of Things industry chain, such as smart grid, smart transportation, smart home, finance, Mobile POS terminals, supply chain automation, industrial automation, smart buildings, fire protection, public safety, environmental protection, meteorology, digital medical care, remote sensing surveys, military, area exploration, agriculture, forestry, water affairs, coal mines, petrochemicals and other industrial fields.

Key Features

• Stable and reliable performance with 24×7 continuous operation support

• Flexible networking with automatic multi-network switching

• Industrial-grade metal body design with IP30 protection

• Supports desktop placement and wall-mounted installation

• Wide DC input range: 5V–24V with reverse polarity protection

• Advanced protection against static electricity, surge, and electrical pulse interference

• Built-in hardware watchdog for automatic fault detection and self-recovery

• 4G connectivity with backward compatibility for 3G and 2G networks

• Automatic network health check and intelligent network switching

• Supports APN and VPDN network adaptation

• Simultaneous wired and 4G connectivity with intelligent backup switching

• Cloud service support for centralized device management and maintenance

• Remote web access through cloud with private or public IP support

• 1× LAN port and 1× WAN/LAN switchable port with 10/100 Mbps speed

• Wireless LAN support with multiple LED status indicators

• VPN support including PPTP, L2TP, IPSec, OpenVPN, and GRE

• Supports wired and wireless dual-network redundancy

• SIM information display and automatic APN detection

• Compatible with PPPoE, DHCP, and Static IP configurations

• Advanced firewall and NAT security features

• Blacklist and whitelist access control support

• SNAT and DNAT routing functions

• Traffic management with IP, MAC, and interface bandwidth control

• Multi-platform management via SSH, TELNET, and Web interface

• M2M remote management platform support for monitoring and upgrades

• Remote parameter configuration and firmware upgrade support

• One-click factory reset function

• High system stability with hardware watchdog protection
